HDMI Extender slim 4K with IR + RS-232 control, Receiver, 70m

EAN: 5711783613282

MPN: VL120016R

  • Support up to 4K@60Hz 4:2:0 video signal transmission
  • Max transmission distance is 4K 131ft (40m) and 1080P 230ft (70m) over single CAT5e/CAT6 cable
  • High Bandwidth: 10.2Gbps
  • Compliant with HDMI & HDCP1.4
  • Use HDBaseT technology for extended capability and reliability
  • Support ARC
  • Bi-directional IR pass-through

VL120016R is a mini-size HDBaseT Extender receiver, supporting 1080P/ 4K signal transmission up to 131ft (40m), 1080P signal up to 230ft (70m) over single CAT5e/6 cable. VL120016 supports CEC, bidirectional RS232 & IR control, and one way-directional PoH function.
Note:
Not compatable with HDBaseT splitter VLHDBSP1X4V2

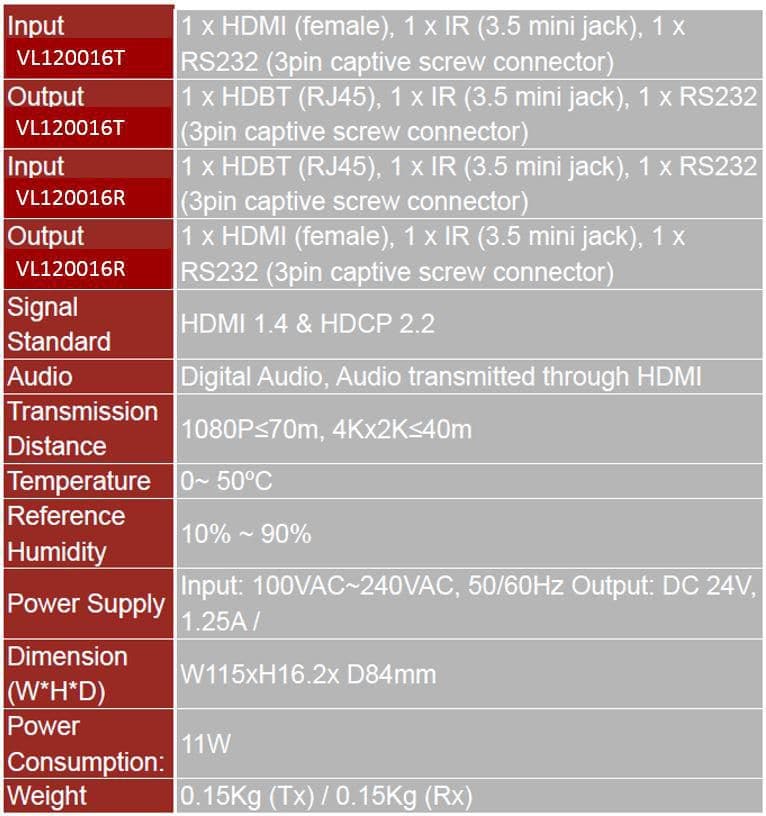

Features

3D:
Yes
Bandwidth:
10.2 Gbit/s
Cable types supported:
Cat5e
CEC pass-through:
Yes
Consumer Electronics Control (CEC) support:
Yes
HDBaseT certified:
Yes
HDCP & EDID bypass:
Yes
HDCP pass-through:
Yes
IR pass-through:
Yes
LED indicators:
Yes
Maximum resolution:
4096 x 2160 pixels
Maximum transfer distance:
70 m
Product colour:
Black
Remote control type:
IR + RS232
RS-232 pass-through:
Yes
Supported video modes:
3840p
Type:
AV receiver
Wall mountable:
Yes

Operational conditions

Operating relative humidity (H-H):
10 - 90%
Operating temperature (T-T):
-20 - 70 °C

Packaging content

AC adapter included:
Yes
Included power plug types:
EU
IR blaster included:
No
IR receiver included:
No
Mounting brackets included:
Yes

Packaging data

Package depth:
151 mm
Package height:
81 mm
Package weight:
308 g
Package width:
152 mm

Ports & interfaces

3.5 mm (1/8-inch) in:
Yes
3.5 mm (1/8-inch) out:
Yes
Connectivity technology:
Wired
DC-in jack:
Yes
HDMI in:
1
HDMI version:
1.4
Number of HDMI outputs:
1
Remote (IR) input:
1
Remote (IR) output:
1
RJ-45 input ports:
1
RS-232 input ports:
1
RS-232 output ports:
1
Serial interface type:
RS-232
Serial ports quantity:
1
Video in:
1
Video out:
1

Power

AC input frequency:
50 - 60 Hz
AC input voltage:
100 - 240 V
External power adapter:
Yes
Operating voltage:
24 V
Output current:
1.25 A
Power consumption (receiver) (max):
11 W
Power over Ethernet (PoE):
Yes

Technical details

Audio support:
Yes

Weight & dimensions

Depth:
84 mm
Height:
16.2 mm
Weight:
208 g
Width:
115 mm
