HDBaseT Extender Set (Transmitter & Receiver), 70m max, 4K, HDMI over CAT6A

EAN: 5712505764855

MPN: VL120007

  • Support up to 4K@60Hz 4:2:0 video signal transmission
  • Max transmission distance is 4K 131ft (40m) and 1080P 230ft (70m) over single CAT5e/CAT6 cable
  • High Bandwidth: 10.2Gbps
  • HDTV Compatible, HDMI1.4 and HDCP compliant
  • Support PoC & CEC
  • Use HDBaseT technology for extended capability and reliability
  • Bi-directional IR control
  • LED indicators showing work status
  • HDMI over CAT6A

Transmitter and Receiver. VL120007 is a HDBaseT extender for HDMI and bi-directional IR signals, which contains a transmitter (VL120007T) and a receiver (VL120007R). It transmits 4K signal up to 131ft (40m), 1080P signal up to 230ft (70m) over single Cat5e/Cat6 cable. The extender set supports PoC function, meaning only one power supply is needed.
HDMI over CAT6A

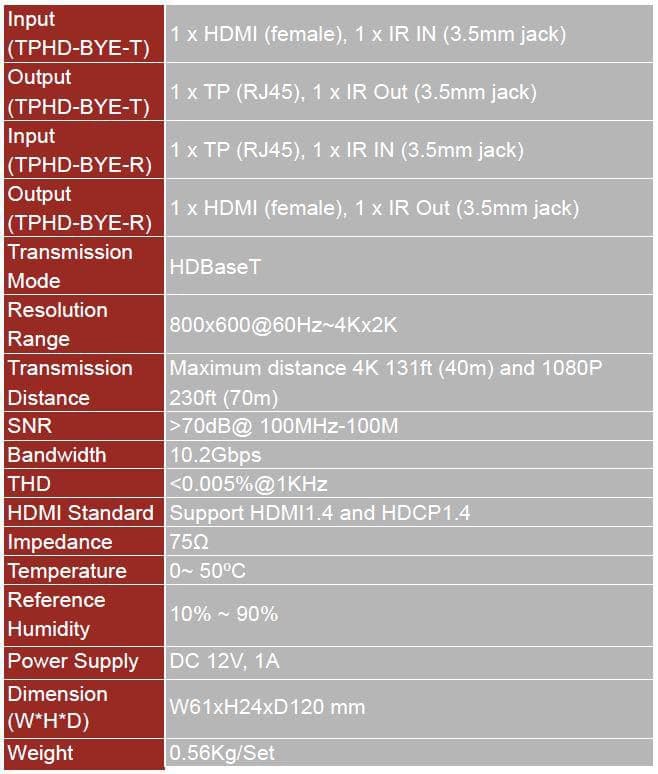

Features

3D:
Yes
Bandwidth:
10.2 Gbit/s
Cable types supported:
Cat5e
CEC pass-through:
Yes
Consumer Electronics Control (CEC) support:
Yes
HDBaseT certified:
Yes
HDCP & EDID bypass:
Yes
HDCP pass-through:
Yes
Impedance:
75 Ω
IR pass-through:
Yes
LED indicators:
Yes
Maximum resolution:
4096 x 2160 pixels
Maximum transfer distance:
70 m
Product colour:
Black
Remote control type:
IR
Supported video modes:
3840p
Type:
AV transmitter & receiver
Wall mountable:
Yes

Operational conditions

Operating relative humidity (H-H):
10 - 90%
Operating temperature (T-T):
0 - 50 °C

Packaging content

AC adapter included:
Yes
Included power plug types:
EU
IR blaster included:
No
IR receiver included:
No
Mounting brackets included:
Yes

Packaging data

Package depth:
132 mm
Package height:
111 mm
Package weight:
552 g
Package width:
196 mm

Ports & interfaces

Connectivity technology:
Wired
DC-in jack:
Yes
HDMI in:
1
HDMI version:
1.4
Number of HDMI outputs:
1
Remote (IR) input:
1
Remote (IR) output:
1
RJ-45 input ports:
1
RJ-45 output ports:
1
Video in:
1
Video out:
1

Power

AC input frequency:
50 - 60 Hz
AC input voltage:
100 - 240 V
External power adapter:
Yes
Operating voltage (transmitter):
12 V
Operating voltage (receiver):
12 V
Output current:
1 A
Power consumption (receiver) (max):
9.6 W
Power consumption (transmitter) (max):
9.6 W
Power over Ethernet (PoE):
No

Technical details

Audio support:
Yes

Weight & dimensions

Depth:
132 mm
Height:
111 mm
Transmitter dimensions (WxDxH):
61 x 120 x 24 mm
Weight:
450 g
Width:
196 mm
