VLSC242M is a 4X2 seamless KVM switcher w/ Multiview, HDBaseT receiver included in the package.
It is build on HDBaseT 3.0 an supports 4K@60Hz 4:4:4 video

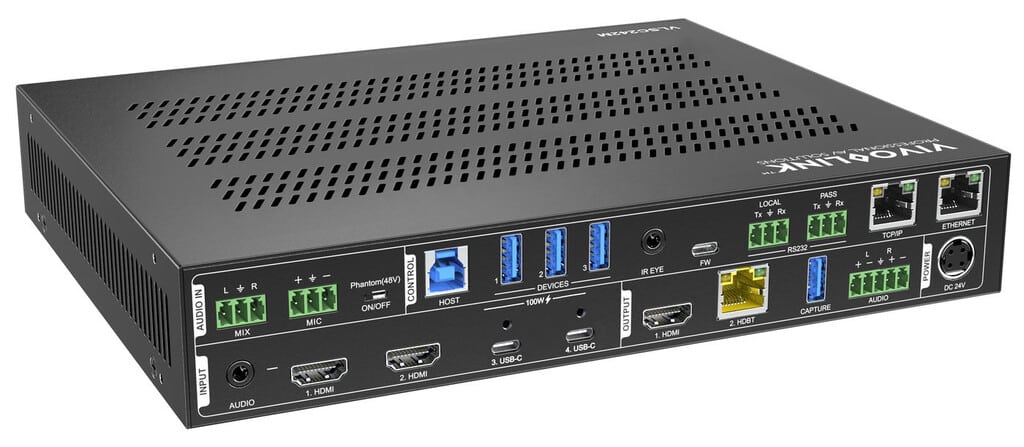

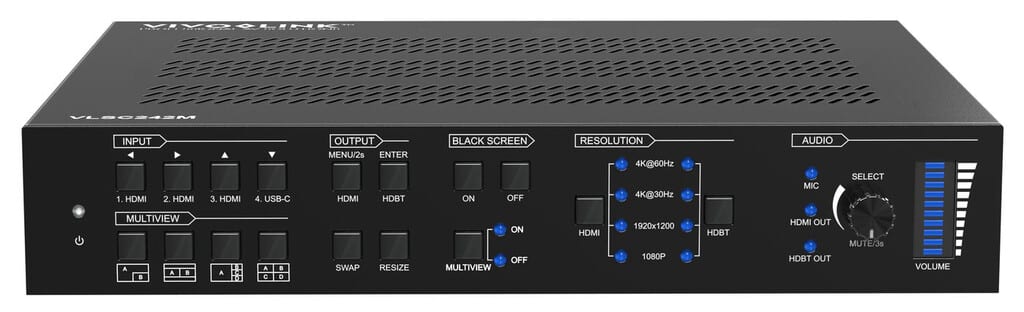

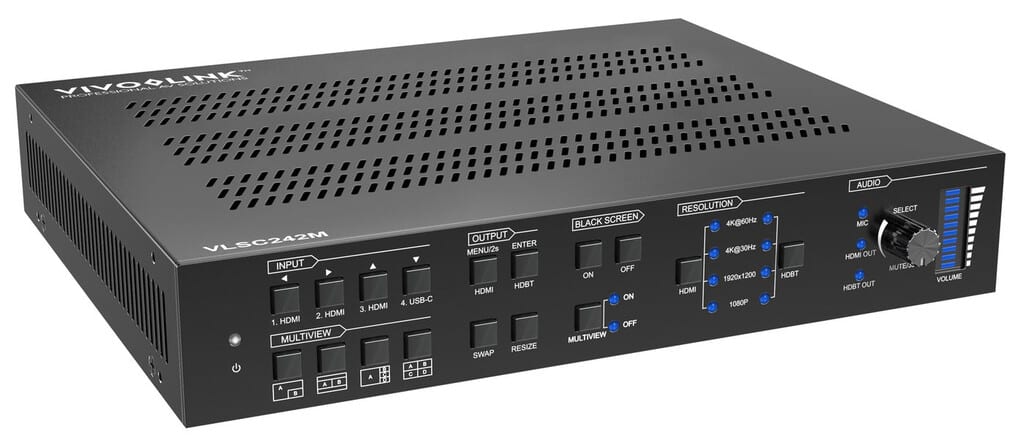

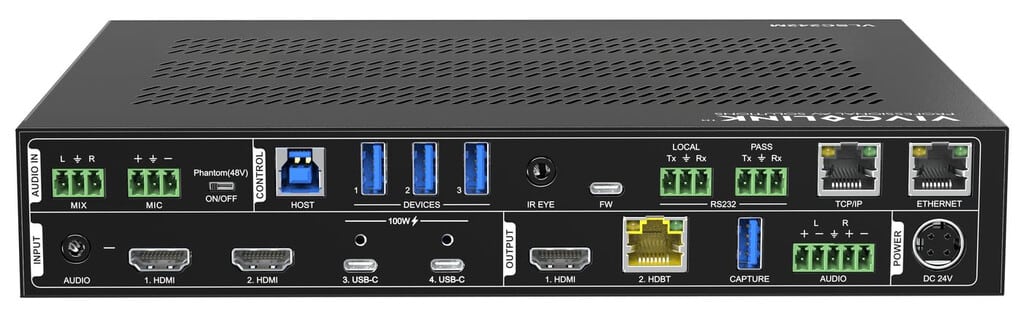

Local device:
Inputs: 2x USB-C + 2x HDMI, analouge audio and microphone
Outputs: HDMI + HDBaseT outputs + USB3.0 video stream for Teams/Zoom etc…
3 x local USB3.0 inputs + 1 x HOST

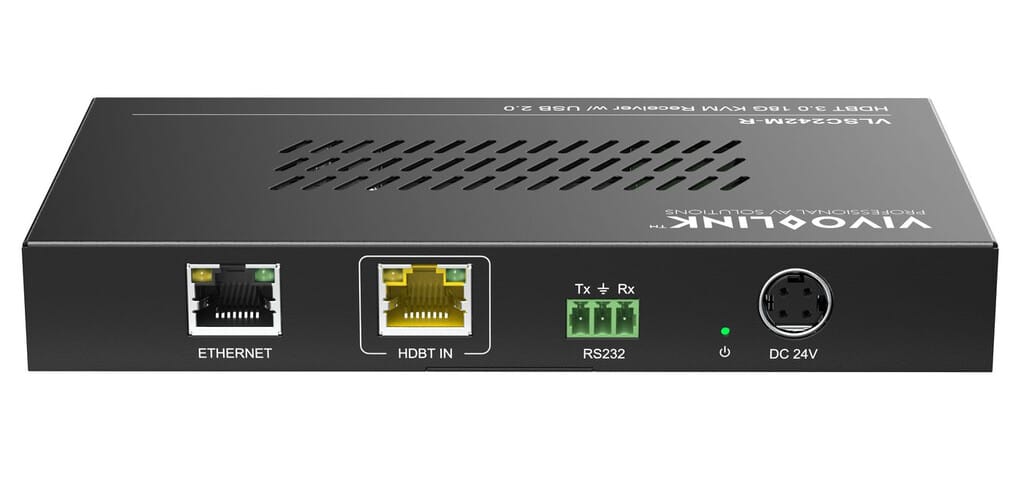

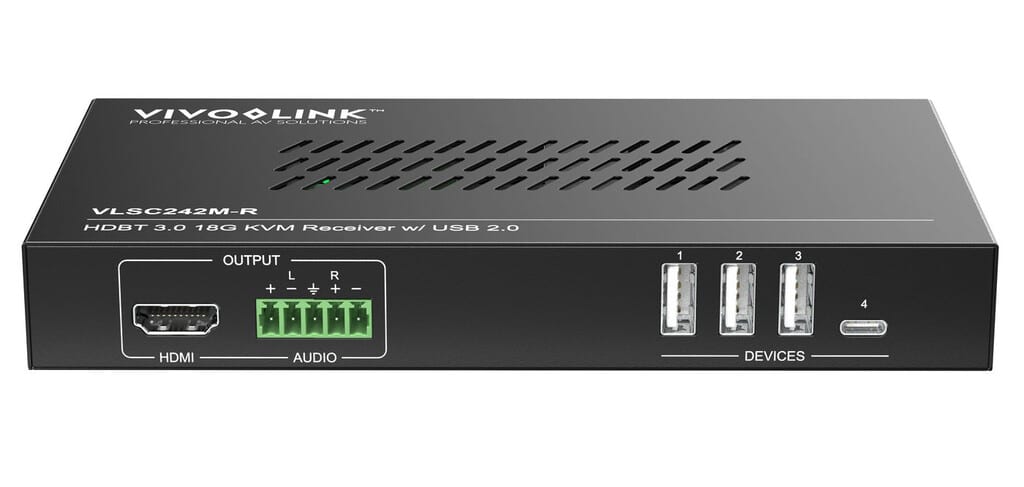

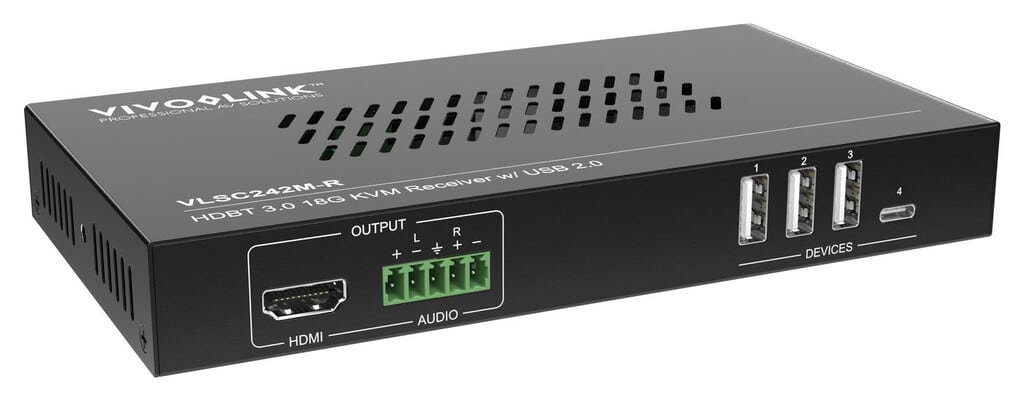

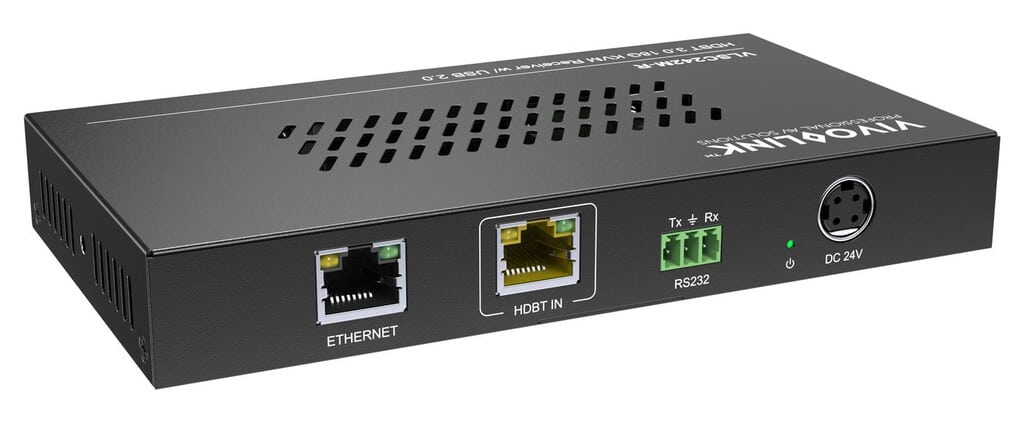

Receiver:
Outputs:
HDMI and Analouge Audio out for active speakers + RS232
Inputs: 4 USB inputs (3x USB-A and 1 x USB-C)

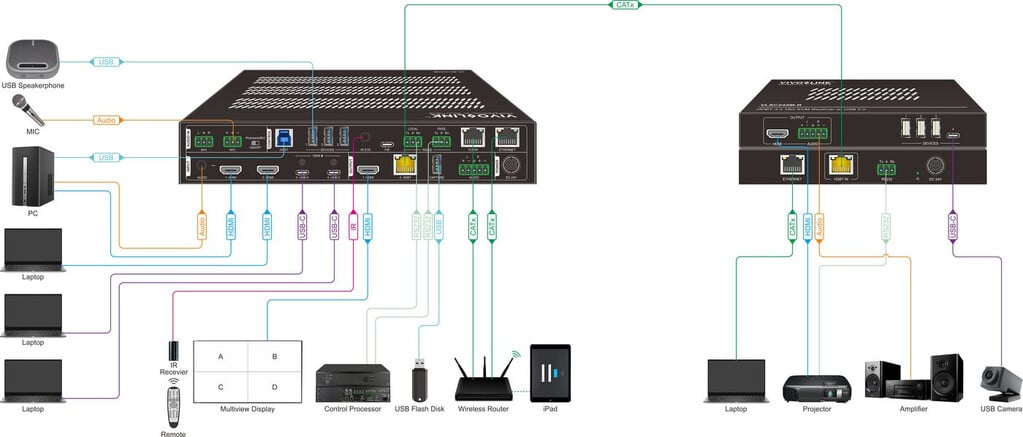

Typical installation:
4K Seamless presentation switcher
Ideal for conference rooms where both HDMI and USB-C hosts can connect.
Function:
True seamless switching
4 input / 2 x HDMI 2x USB-C
USB-C inputs supports 100W power charging
Supports HDMI2.0 4K@60Hz 4:4:4, HDCP2.2
Mic/Line input and balance/digital local audio breakout + remote audio at receiver
Ethernet port
TCP/IP + RS232 control
