Extender KVM

Vivolink: Professional AV Solutions

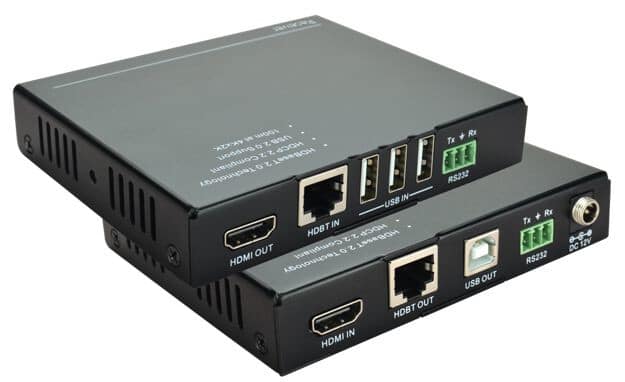

HDBaseT KVM Extender

EAN: 5705965989418,5704174944294

MPN: VL120021

  • 4K 100m transmission
  • HDCP 2.2 compatible
  • 3 x USB KVM function supporting USB 2.0 transfer speed up to 200Mbps
  • RS232 pass-through

Transmitter/Receiver HDMI USB PoH48,Bi-directional IR, RS232, 3 x USB 2.0 and CEC, one PSU, HDMI 2.0 , HDCP2.2
Typical installations:
• Interactive touch screens, control of a remote
• Ideally designed for smart displays and fitting digital signage markets
Function:
• 100m Extender HDMI + USB + RS232 (with CAT6 cable)
• Supports 4K x 2K @ 60Hz 4:2:0
Note: UK Plug NOT included. Please add: VLPSUPLUG-UK

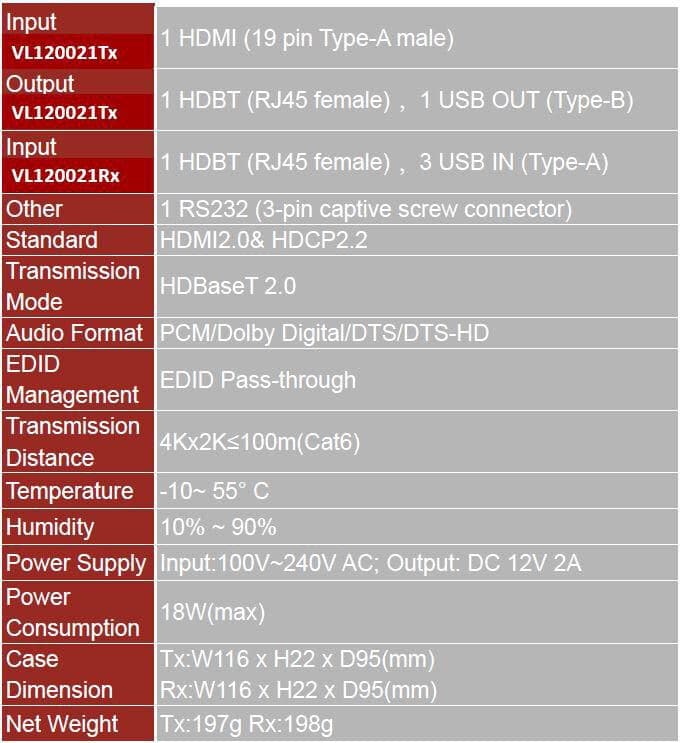

Features

Cable types supported:
Cat6a
Connectivity technology:
Wired
Easy to install:
Yes
LED indicators:
Link
Maximum digital resolution:
4096 x 2160 pixels
Maximum transfer distance:
100 m
Plug and Play:
Yes
Supported resolutions:
1280x800 4:4:4

Operational conditions

Operating temperature (T-T):
-10 - 55 °C

Packaging content

AC adapter included:
Yes
Included power plug types:
EU
Manual:
Yes
Mounting bracket(s) included:
Yes

Packaging data

Package depth:
161 mm
Package height:
128 mm
Package weight:
818 g
Package width:
183 mm

Ports & interfaces

RJ-45 ports quantity:
1
RS-232 ports:
1
USB 2.0 ports quantity:
3
USB data transfer rates:
200 Mbit/s
USB port type:
USB Type-A

Power

AC adapter output voltage:
12 V
AC adapter output current:
2 A
AC input voltage:
100 - 240 V
Power consumption (transmitter) (max):
18 W

Technical details

Dimensions (WxDxH):
116 x 95 x 22 mm
Video in:
1
Weight:
500 g

Transmitter

Number of displays supported:
1
RJ-45 ports quantity (transmitter):
1
Transmitter local keyboard/mouse port type:
USB
Transmitter local video port:
Yes
Transmitter video port type:
HDMI
