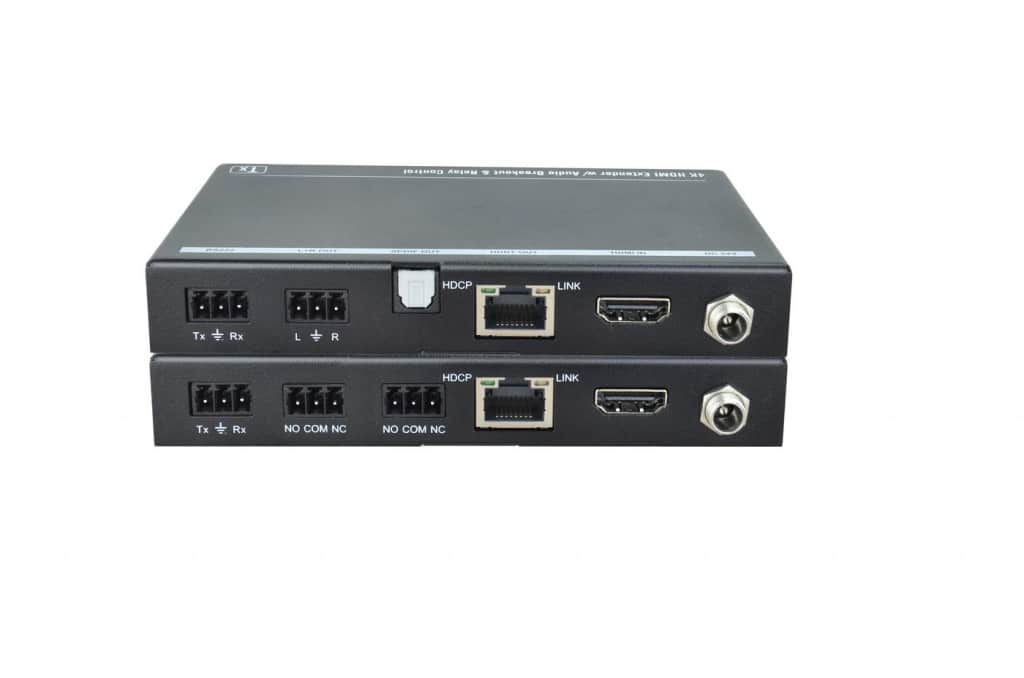

HDBaseT Extender kit w/relay

EAN: 5706998558275

MPN: VLHDMIEXT416

  • 4K HDMI Extender set
  • HDMI 1.4(4K@60 4:2:0), HDCP 2.2
  • HDBT extension up to 1080P@70m & 4K@40m
  • Relay control for projection screen
  • Audio de-embedder on Tx
  • CEC pass-through
  • Two way PoC

HDBaseT extender kit including relay for projector screen Rx unit and audio de-embed on Tx

2 way PoC, IR, RS232, one PSU, HDMI 1.4 and HDCP2.2 compliant

Typical installation:
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.

Function:
HDMI extender
Relays output on receiver unit can control screen up/down via RS232 codes.
Audio de-embed on transmitter unit for connection to audio system
Point to point Tx to Rx for 70m@1080P,40m 4K

Features

Bandwidth:
10.2 Gbit/s
Cable types supported:
Cat5e
CEC pass-through:
Yes
HDBaseT certified:
Yes
HDCP & EDID bypass:
Yes
HDCP pass-through:
Yes
IR pass-through:
Yes
LED indicators:
Yes
Maximum resolution:
4096 x 2160 pixels
Maximum transfer distance:
70 m
Product colour:
Black
Remote control type:
IR + RS232
RS-232 pass-through:
Yes
Supported video modes:
3840p
Type:
AV transmitter & receiver
Wall mountable:
Yes

Operational conditions

Operating temperature (T-T):
-25 - 70 °C

Packaging content

AC adapter included:
Yes
Included power plug types:
EU
IR blaster included:
No
IR receiver included:
No
Mounting brackets included:
Yes

Packaging data

Package depth:
161 mm
Package height:
127 mm
Package weight:
984 g
Package width:
182 mm

Ports & interfaces

3.5 mm (1/8-inch) in:
Yes
3.5 mm (1/8-inch) out:
Yes
Connectivity technology:
Wired
DC-in jack:
Yes
HDMI in:
1
HDMI version:
1.4
Number of HDMI outputs:
1
Remote (IR) input:
1
Remote (IR) output:
1
RJ-45 input ports:
1
RJ-45 output ports:
1
RS-232 input ports:
1
RS-232 output ports:
1
Serial interface type:
RS-232
Serial ports quantity:
1
Video in:
1
Video out:
1

Power

AC input frequency:
50 - 60 Hz
AC input voltage:
100 - 240 V
External power adapter:
Yes
Power consumption (receiver) (max):
9 W
Power consumption (transmitter) (max):
9 W
Power over Ethernet (PoE):
Yes

Technical details

Audio support:
Yes

Weight & dimensions

Depth:
161 mm
Height:
127 mm
Weight:
600 g
Width:
182 mm
