Audio amplifier, 2x20W

EAN: 5712505764800

MPN: VL120004

  • 2 switchable analog audio inputs
  • One 3-level MIC input with mixer function
  • Stereo, Dual mono & Bridge output mode selectable
  • Bass, Treble & Volume adjustable
  • Loop output to cascade to another VL120004
  • Locking power adaptor
  • Controlable via button, RS232 (optional IR via IR-VL120004)

VL120004 is a digital amplifier (Class-D) with 2 line & 1 MIC inputs, which supports EQ control and MIC mixing. With 2x20W@4 Ohm as default output, it can be switched to 1x40W@8 Ohm by bridge connection.

Controlable via button, RS232 (optional IR via IR-VL120004).

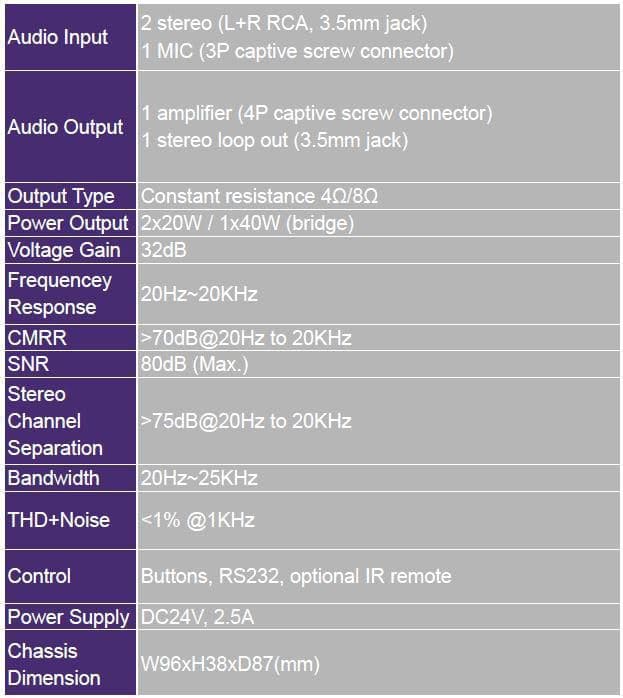

Audio

Amplifier class:
D
Audio output channels:
2.0 channels
Bridge-mode power output per channel (8 Ohm):
40 W
Bridge-mode power output per channel (4 Ohm):
40 W
Frequency range:
20 - 20000 Hz
RMS power output per channel (4 Ohm):
20 W
RMS power output per channel (8 Ohm):
20 W
Signal-to-Noise Ratio (SNR):
80 dB
Total Harmonic Distortion (THD):
1%

Display

Built-in display:
No

Indication

LED indicators:
Yes

Packaging content

Manual:
Yes

Packaging data

Package depth:
204 mm
Package height:
77 mm
Package weight:
894 g
Package width:
267 mm

Ports & interfaces

Audio (L/R) in:
1
Audio (L/R) out:
1
DC-in jack:
Yes
Headphone connectivity:
3.5 mm
Headphone outputs:
1
Phono audio in (L,R):
Yes
Speakers connectivity type:
3.5mm

Power

AC input voltage:
110 - 220 V

Technical details

Bass adjustment:
Yes
Bridge function:
Yes
Connectivity technology:
Wired
Material:
Metal
Product colour:
Black
Purpose:
Home
Remote control type:
RS-232
Treble adjustment:
Yes
Turntable connectivity:
No

Weight & dimensions

Depth:
87 mm
Height:
38 mm
Weight:
790 g
Width:
96 mm
