Audio amplifier 2x50W

EAN: 5712505764824

MPN: VL120005

  • 2 analog and 1 optical digital inputs
  • Stereo and bridge output modes selectable
  • Bass, Treble & Volume adjustable
  • Loop output to cascade to another amplifier
  • Locking power connector
  • Controlable via button, RS232, IR and TCP/IP

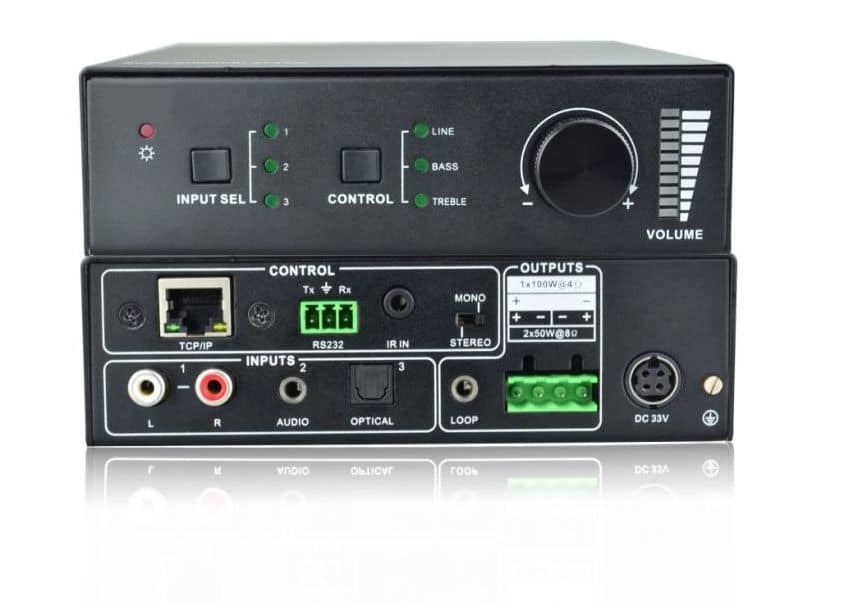

VL120005 is a digital amplifier with 3 inputs. With 2x50W@8 Ohm as default output, it can also be switched to 1x100W@4 Ohm by bridge connection.

Controlable via button, RS232, IR and TCP/IP.

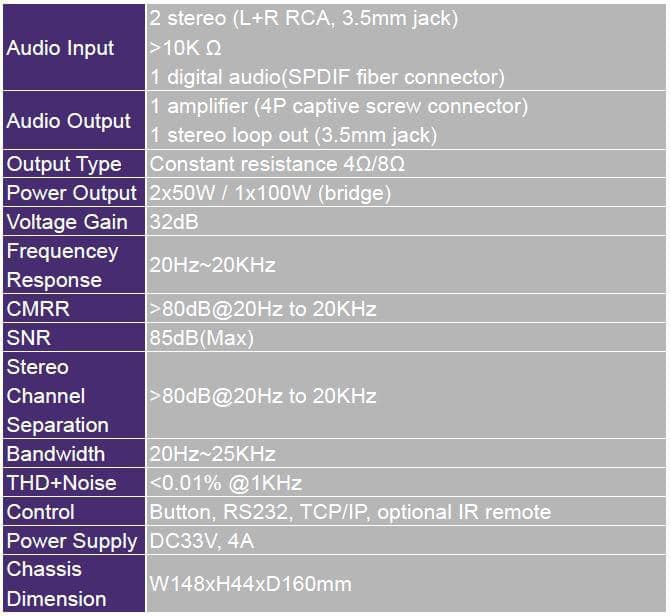

Audio

Amplifier class:
D
Audio output channels:
2.0 channels
Bridge-mode power output per channel (8 Ohm):
100 W
Bridge-mode power output per channel (4 Ohm):
100 W
Frequency range:
20 - 20000 Hz
RMS power output per channel (8 Ohm):
50 W
Signal-to-Noise Ratio (SNR):
85 dB
Total Harmonic Distortion (THD):
0.01%

Indication

LED indicators:
Yes

Packaging content

Manual:
Yes

Packaging data

Package depth:
248 mm
Package height:
126 mm
Package weight:
1.67 kg
Package width:
317 mm

Ports & interfaces

Audio (L/R) in:
1
Audio (L/R) out:
1
DC-in jack:
Yes
Digital audio optical in:
1
Headphone connectivity:
3.5 mm
Headphone outputs:
1
Phono audio in (L,R):
Yes
Speakers connectivity type:
RCA

Power

AC input voltage:
110 - 220 V
DC input voltage:
3 V
Maximum current:
4 A

Technical details

Bass adjustment:
Yes
Bridge function:
Yes
Connectivity technology:
Wired
Material:
Metal
Product colour:
Black
Purpose:
Home
Remote control type:
RS-232
Treble adjustment:
Yes
Turntable connectivity:
No

Weight & dimensions

Depth:
160 mm
Height:
44 mm
Weight:
600 g
Width:
148 mm
