Audio Speaker

Vivolink: Professional AV Solutions

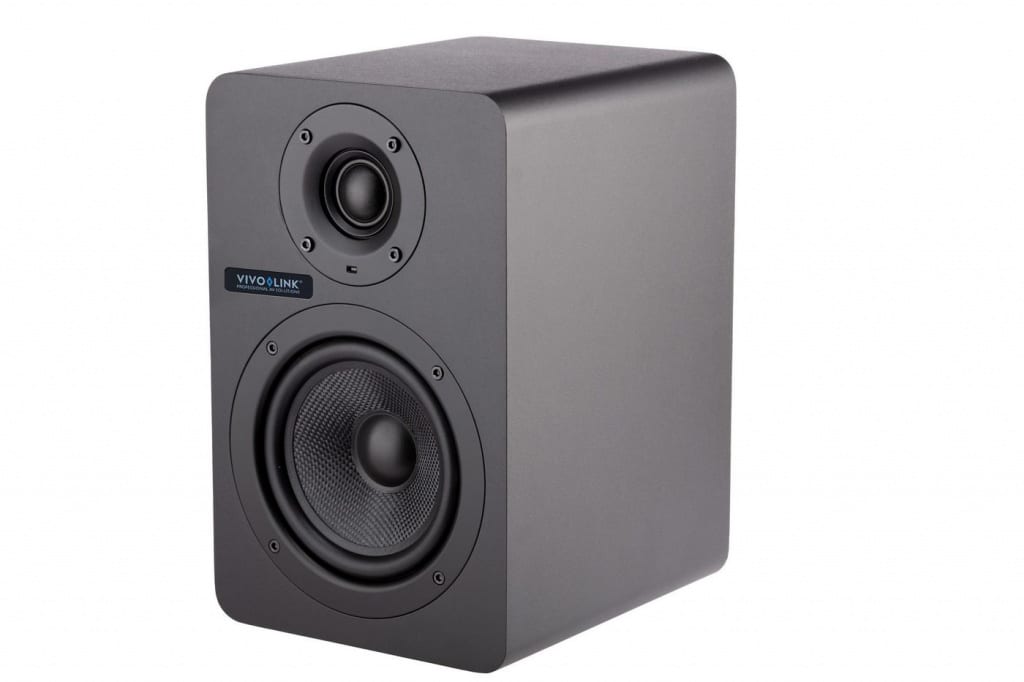

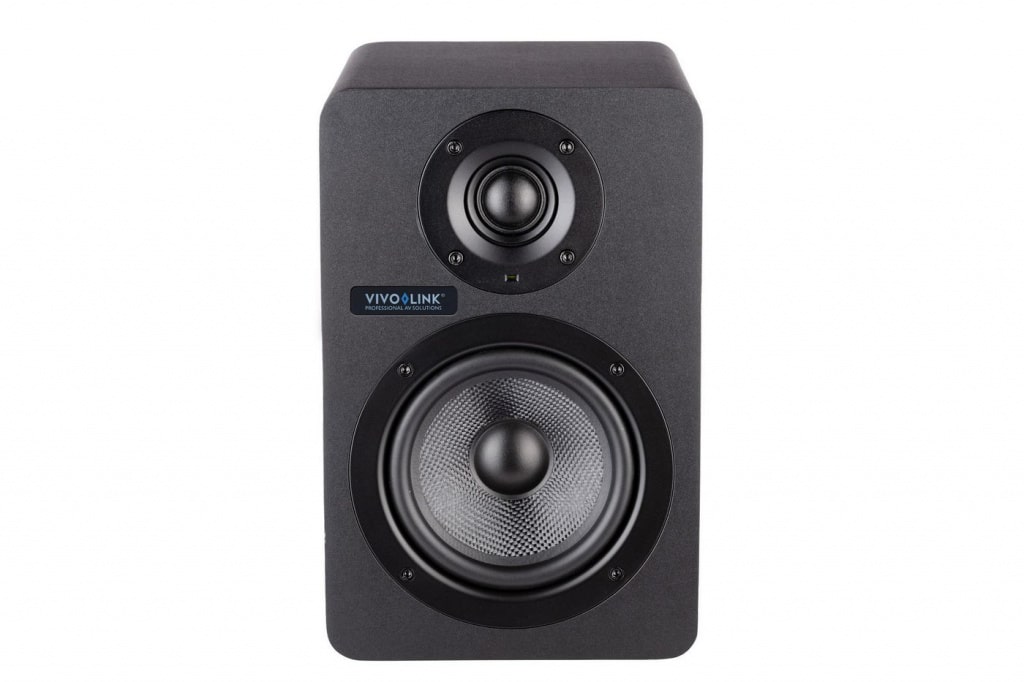

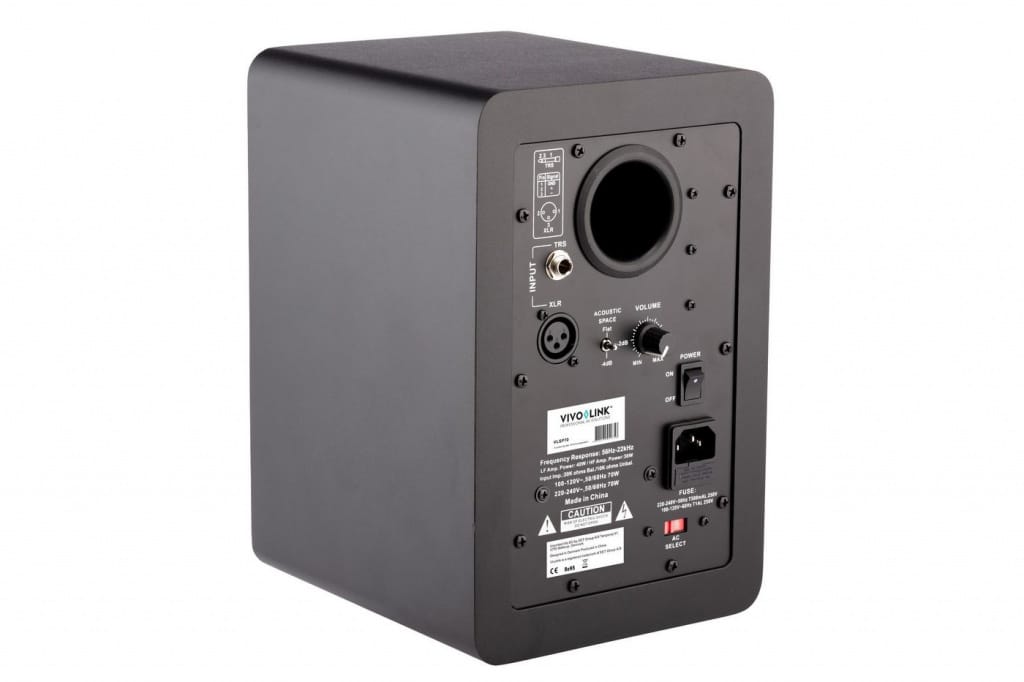

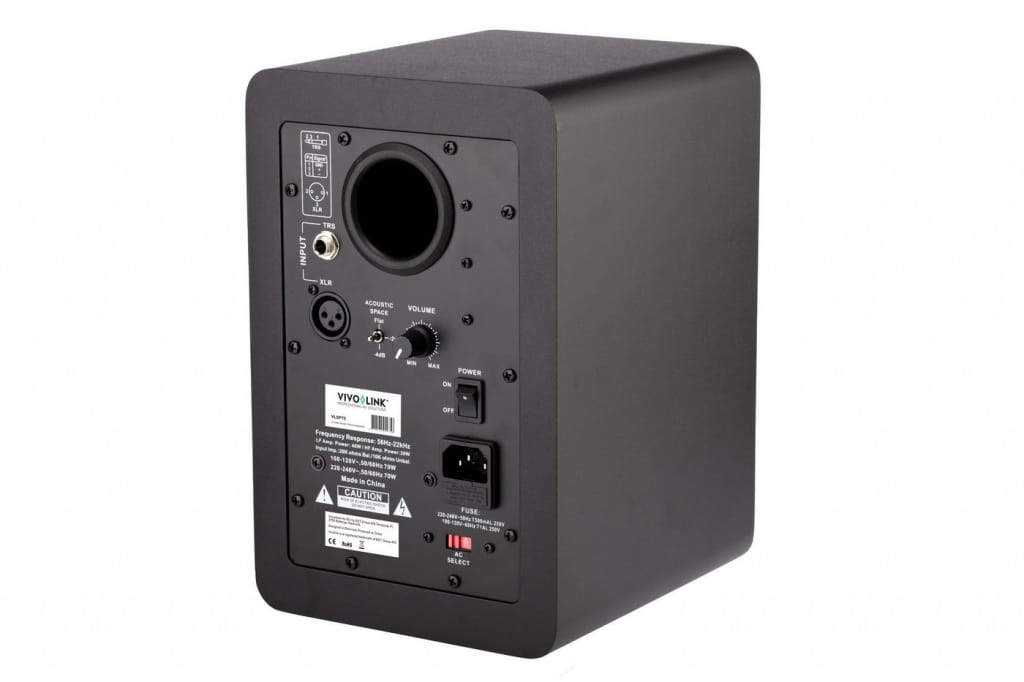

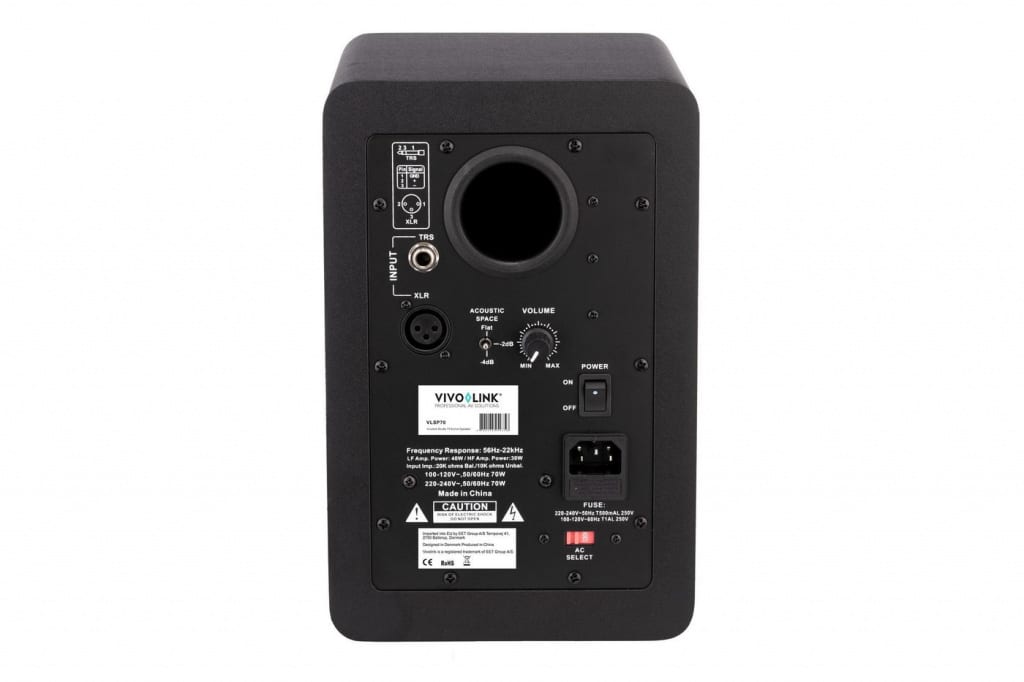

Vivolink Studio 70 Active Speaker

EAN: 5704174949756

MPN: VLSP70

  • 2-way bi amplified studio grade speaker
  • Woofer 5.25″ fiberglass cone
  • Tweeter 1″ neodymium soft dome
  • Frequency Responce: 55Hz-20kHz
  • Input XLR (3pin), 1/4″ TSR 10Kohm balanced/unbalanced
  • Shielding Magnetic Shielded

Vivolink Studio 70 is a two way, bi−amplified studio grade speaker that delivers crystal clear and detailed sound for high−end installations. The XLR balanced input and Jack input opens up for many types of installations and usage.
Note: One speaker, not two.
Typical usage:
– Luxurious board rooms
– Sport bars
– Home theater

Amplifier

Amplifier:
Built-in
Amplifier output power:
50 W

Audio

Frequency range:
55 - 20000 Hz
Peak Music Power Output (PMPO):
70 W
RMS rated power:
50 W

Loudspeakers

Audio output channels:
1.0 channels
Number of drivers:
2
Speaker placement:
Tabletop/bookshelf
Speaker type:
2-way
Tweeter:
Yes
Tweeter diameter:
2.54 cm
Tweeter diameter (imperial):
2.54 cm (1")
Woofer:
Yes
Woofer diameter:
13.3 cm
Woofer diameter (imperial):
13.3 cm (5.25")

Other features

Front speaker frequency range:
45 - 20000 Hz
Housing colour:
Black
Magnetically shielded:
Yes
Number of amplifier channels:
1 channels

Packaging content

Cables included:
AC
Quantity per pack:
1 pc(s)

Packaging data

Package weight:
4.21 kg

Performance

Certification:
CE
Housing material:
MDF
On/off switch:
Yes
Product colour:
Black
Recommended usage:
Stage
Volume control:
Rotary

Ports & interfaces

6.35 mm (1⁄4-inch) input:
1
Connectivity technology:
Wired
Connector(s):
XLR (3pin) and 6.35 mm (1⁄4-inch) Jack balanced/unbalanced

Power

AC input voltage:
230 - 240 V
Power source type:
AC

Weight & dimensions

Depth:
220 mm
Height:
270 mm
Weight:
4.2 kg
Width:
175 mm
