Splitter Switcher

Vivolink: Professional AV Solutions

HDMI 2.0 4×2, 4K@60Hz, 18Gbps, HDCP 2.2, SPDIF, 3.5mm, RS-232, 200×28.5×100 mm

EAN: 5706998972637

MPN: VLHDMIMAT4X2RS

  • 4×2 HDMI presentation switcher with matrix outputs
  • HDMI 2.0b, 4K@60Hz 4:4:4 8bit, HDR 10, HDCP 2.2
  • RS232, IR and WEB GUI control (not telnet)
  • 4K to 1080p down-scaling
  • SPDIF and 3.5mm output for dual HDMI OUT audio extraction and dual HDMI OUT ARC
  • Smart EDID management
  • True 4K matrix switcher that can be controlled via WEB GUI

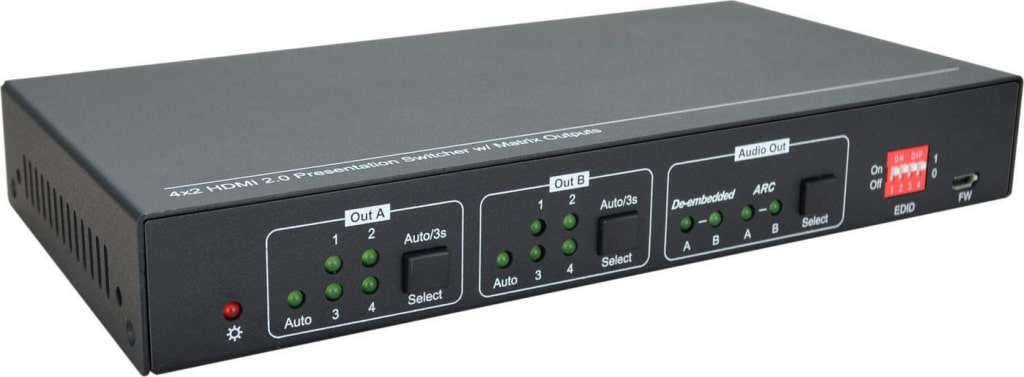

VLHDMIMAT4X2RS is a 4K HDR capable 4×2 HDMI Matrix Switcher that features 18Gbps bandwidth and HDCP2.2 on all inputs and outputs. It’s fully compliant with HDMI2.0 standard and backward compatible with old HDMI1.4 sources and displays. SPDIF and 3.5mm audio breakout audio from corresponding HDMI outputs.

Smart EDID management.
True 4K matrix switcher that can be controlled via WEB GUI (not telnet)

Design

Control type:
Buttons
Housing colour:
Black
LED indicators:
Yes
Remote control included:
Yes

Display

Built-in display:
No

Features

Audio formats supported:
PCM
Bandwidth:
18 Gbit/s
Extended display identification data (EDID):
Yes
HDCP:
Yes
HDCP version:
2.2
High Dynamic Range (HDR) supported:
Yes
Maximum resolution:
3840 x 2160 pixels
Product type:
Scaling matrix switcher

Operational conditions

Operating temperature (T-T):
-5 - 55 °C

Packaging content

AC adapter included:
Yes
Cables included:
IR sensor
Mounting brackets included:
No

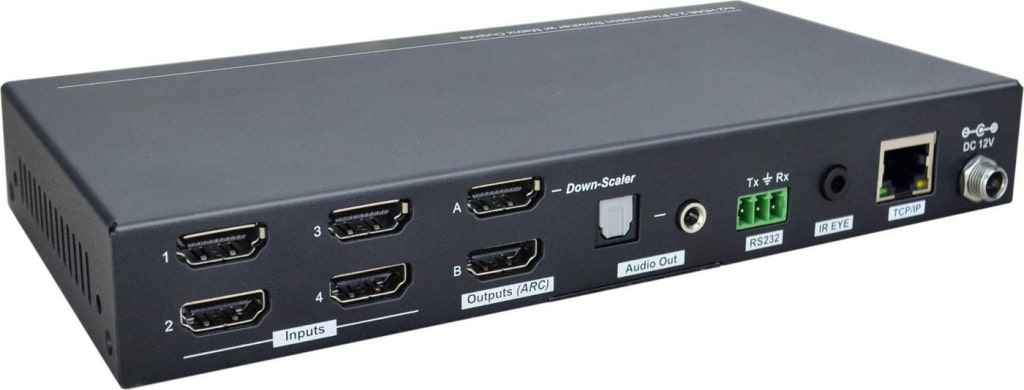

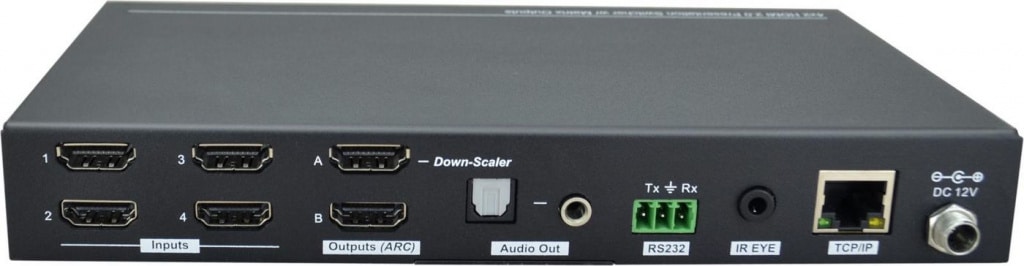

Ports & interfaces

Audio (L/R) out:
1
Digital audio optical out:
1
Ethernet LAN (RJ-45) ports:
1
HDMI input ports quantity:
4
HDMI output ports quantity:
2
HDMI version:
2.0b
RJ-45 input ports:
1
RS-232 ports:
1
USB connector type:
Micro-USB
USB ports quantity:
1

Power

AC input frequency:
50/60 Hz
AC input voltage:
100 - 240 V
Output current:
1000 mA
Output voltage:
12 V
Power consumption (max):
7.5 W

Weight & dimensions

Depth:
100 mm
Height:
28.5 mm
Package depth:
233 mm
Package height:
84 mm
Package weight:
1.05 kg
Package width:
264 mm
Weight:
860 g
Width:
200 mm
