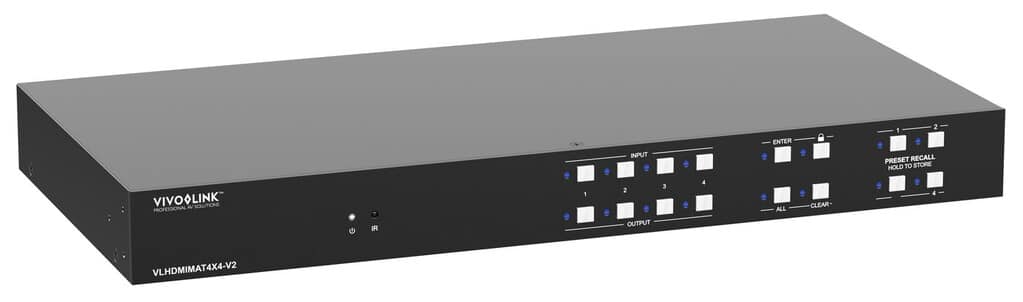

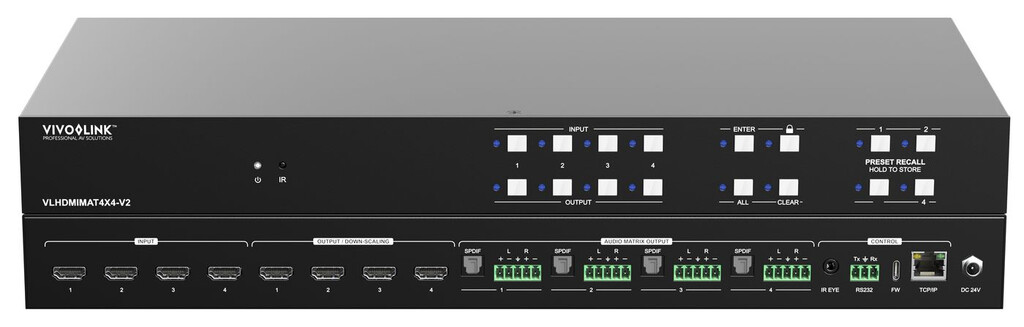

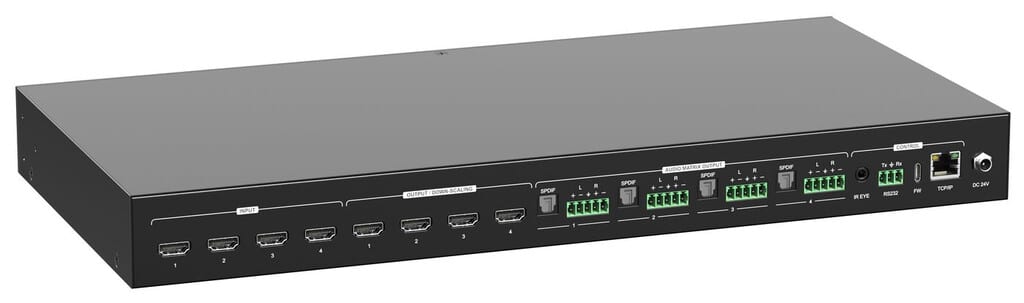

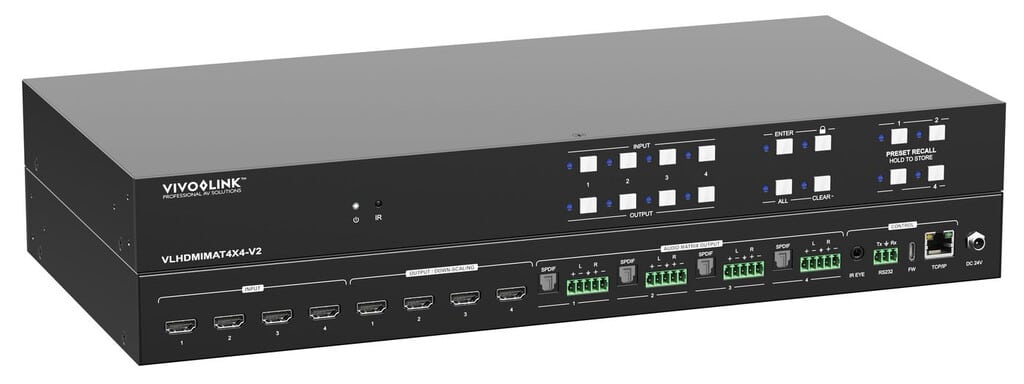

The VLHDMIMAT4X4-V2 is a professional 4×4 HDMI 2.0 matrix switcher designed for seamless routing of high-definition video and audio signals. It features four HDMI inputs and four HDMI outputs, with the last two outputs offering downscaling functionality to accommodate various display resolutions. The switcher supports HDMI 2.0 and HDCP 2.2 standards, ensuring compatibility with the latest 4K content.
Key features include an integrated audio matrix with four SPDIF and four analog audio outputs, allowing for flexible audio routing and de-embedding. The device supports advanced audio formats such as LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:XTM, and DTS-HD® Master AudioTM. Comprehensive EDID management and advanced HDCP handling ensure maximum functionality with a wide range of video sources. Control options include front panel buttons, IR remote, RS232, and TCP/IP, providing versatile integration into various AV setups.
Typical Applications:

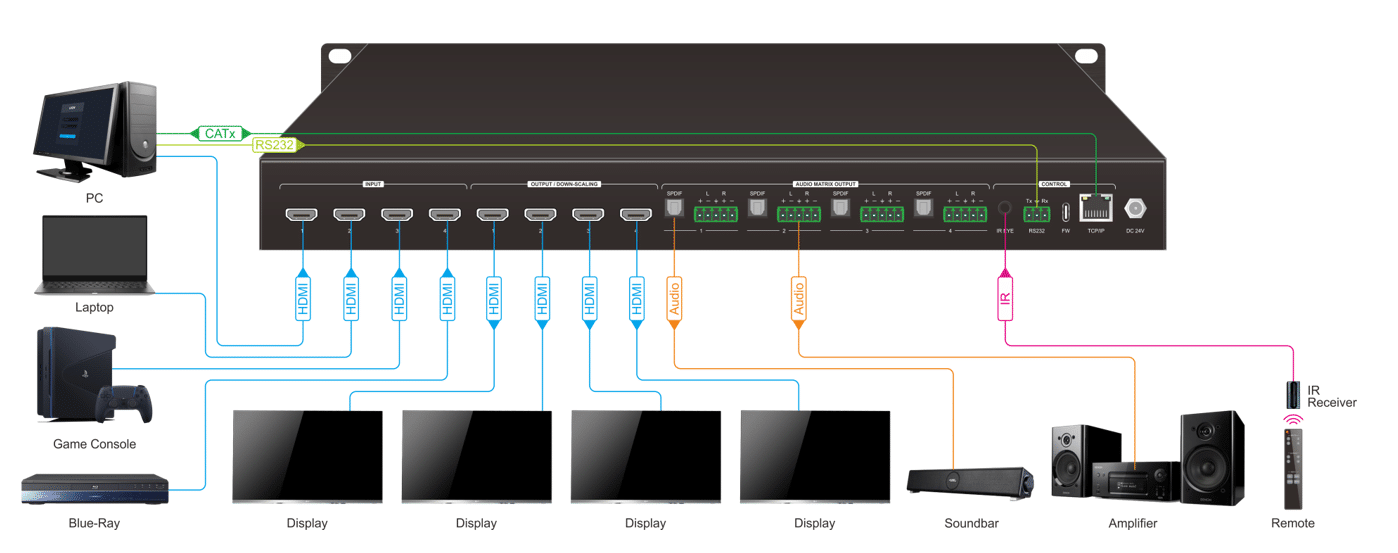

Ideal for professional AV installations requiring flexible routing of multiple HDMI sources to multiple displays, such as conference rooms, control centers, and educational facilities.
