Vivolink: Professional AV Solutions

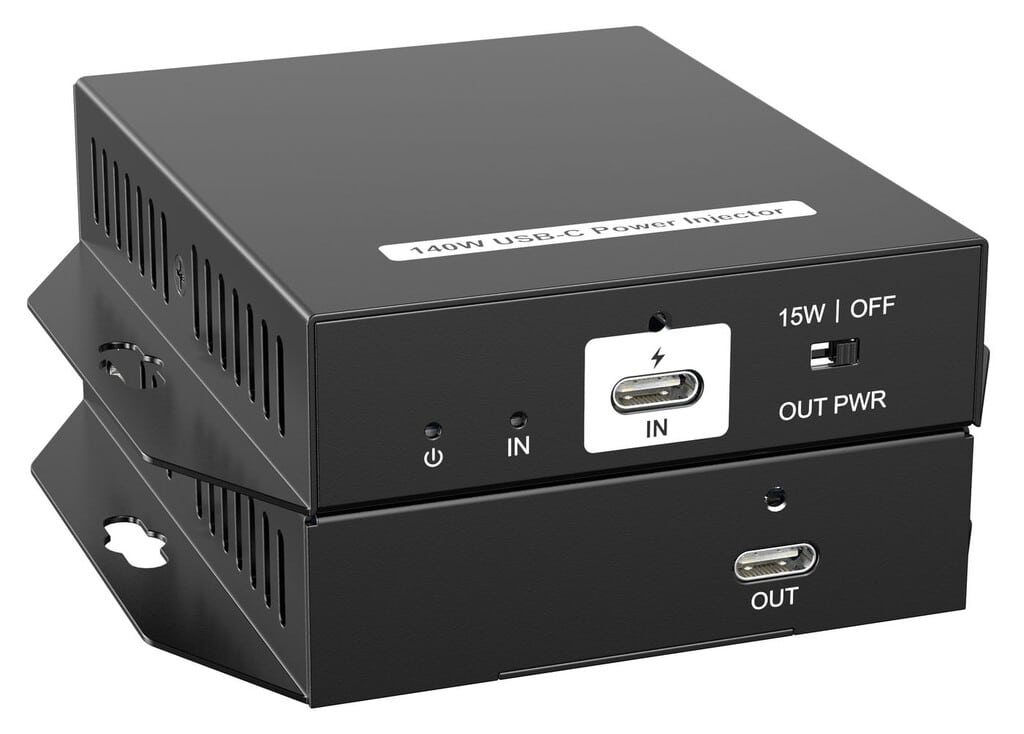

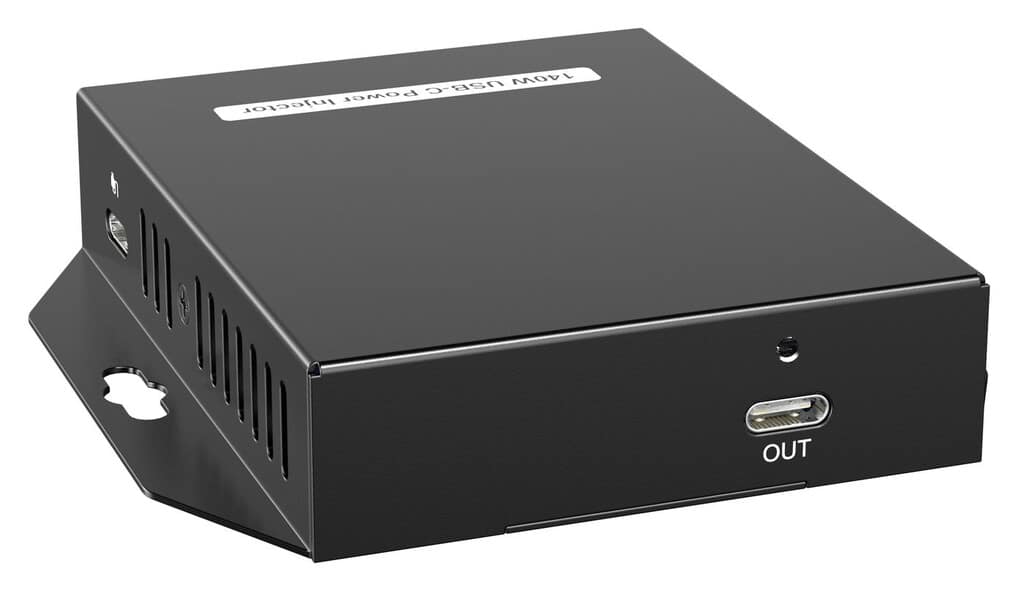

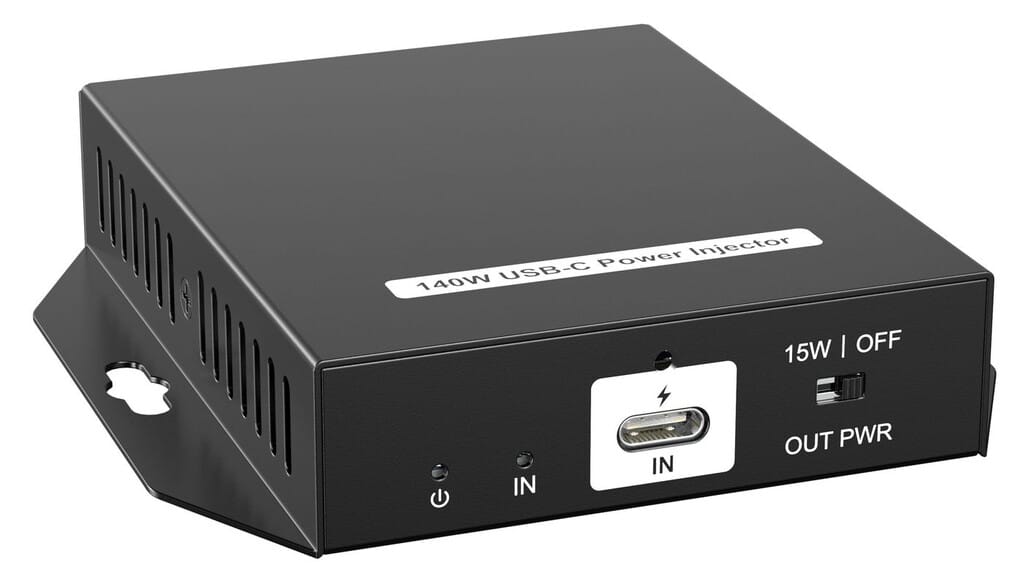

USB-C Power Injector supports up to 140W Charging

EAN: 5715063262054

MPN: VLUSBCPOWER

  • Supports USB PD 3.1 protocol
  • Injects up to 140W charging for USB host. Max total cable length in + out = 7 meters
  • Switchable power for USB-C out (15w)
  • DP Alt mode w/ 4K@60Hz 4:4:4 video in and output
  • Up to 10Gb USB 3.2 Gen2 data transfer rate

USB-C Power Injector supports up to 140W Charging. The charging requires a USB-C PD charger (not included).
Please order PD charger separately: VLUSBCPWR100
Supports DP Alt mode 4K@60Hz 4:4:4 video in / Output

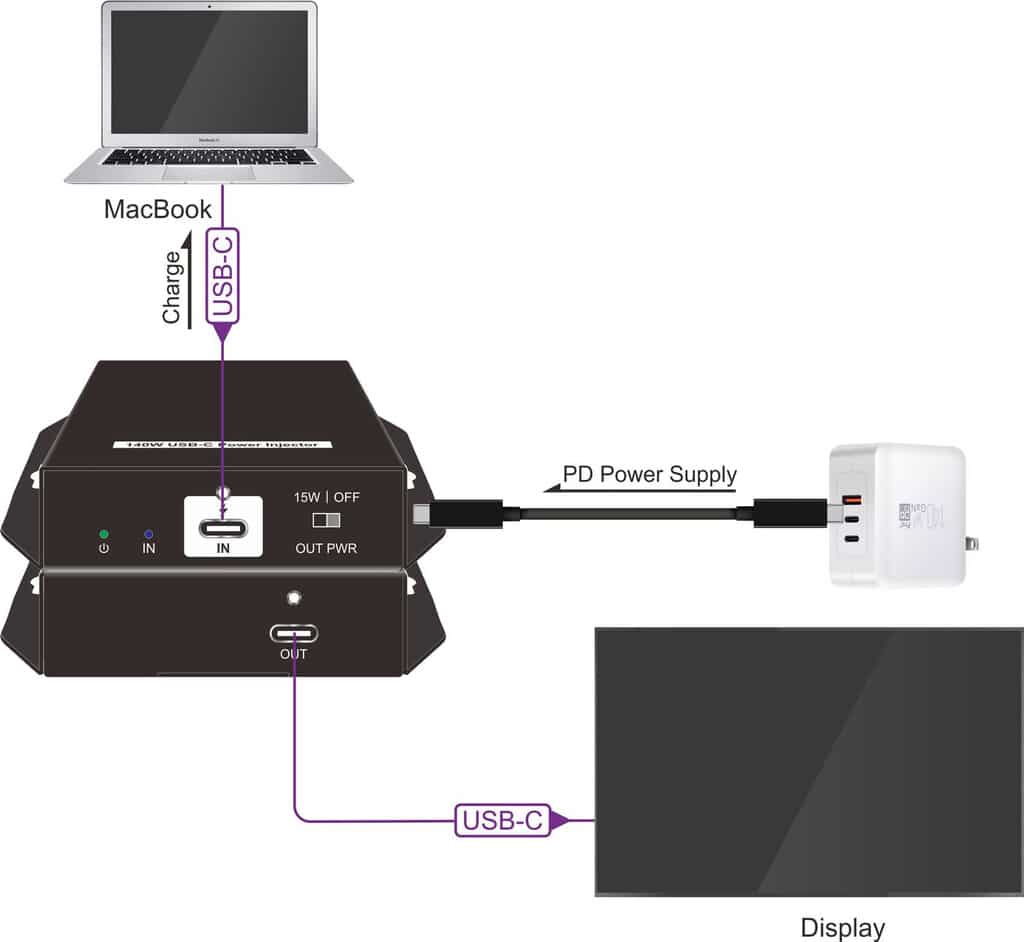

Injects up to 140W charging for USB host. Max total cable length in + out = 7 meters
we recommend Max 2 meter on PC side and 3 meter og Device side.
The USB-C connector in and output are with hole for UBC-C cables with locking screw
we recommend Vivolink PROUSBCMMS
This injector occupies only one Tier in the USB connection.

Features

Built-in display:
No
Cooling type:
Passive
On/off switch:
No
Product colour:
Black
Rack mounting:
No
Reset button:
No

Packaging data

Package depth:
130 mm
Package height:
35 mm
Package weight:
200 g
Package width:
105 mm

Ports & interfaces

DC-in jack:
No
IR connectivity:
No
USB port:
Yes
USB ports quantity:
2
USB port type:
USB Type-C

Power

AC input voltage:
110 - 230 V

Weight & dimensions

Depth:
130 mm
Height:
35 mm
Weight:
165 g
Width:
105 mm
