Vivolink: Professional AV Solutions

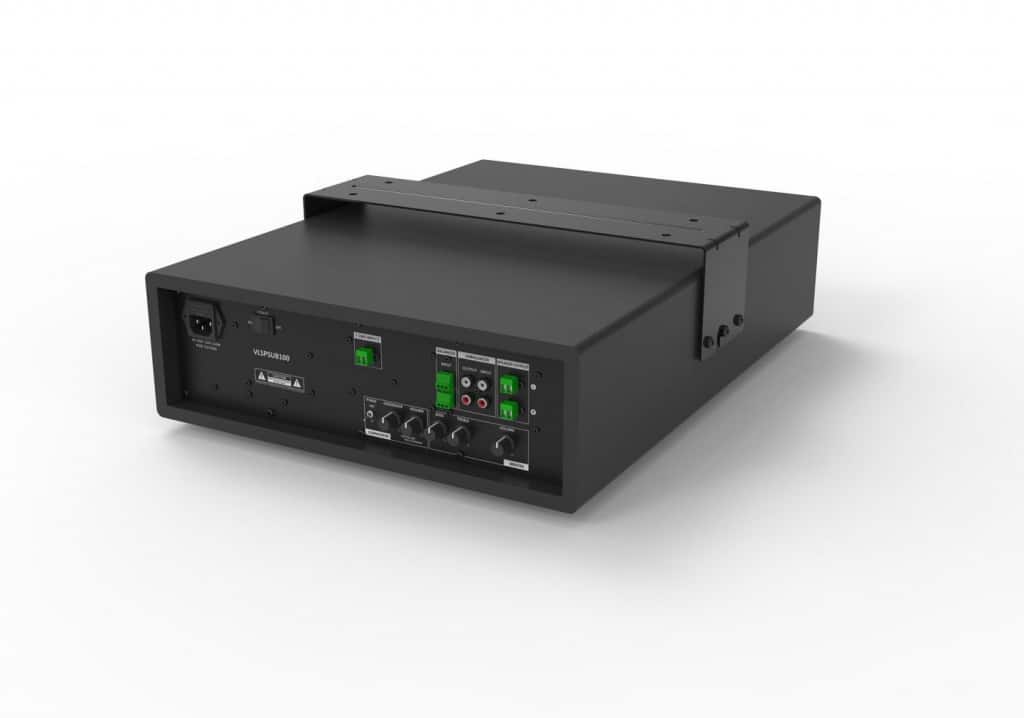

Active powered Subwoofer 8″ 50W + 2x25W 2.1

EAN: 5715063260494

MPN: VLSPSUB100

  • Active powered Subwoofer 8″ 50W
  • 2x25W speaker output + line- out
  • Silent on/off via automatic ECO mode after 90 seconds (less than 0,5 Watt)
  • Audio inputs: 2xRCA + 100V + Balanced input + Bluetooth for (speaker out only)
  • Switchable stereo / mono output
Buy here

Vivolink Active Subwoofer is a perfect match to all Vivolink speakers. It is designed to be mounted over ceiling or under funiture
Ideal for meeting rooms, hotels and auditoriums.
It have line input and loop out for active sattelite speakers.
Subwoofer can also be used together with passive sattelite speakers using the internal power amplifier for sattelige speakers on 2 x 25W
• For rooms up to 200m2
• Power effect for subwoofer: 50 Watts
• Power effect for passive ceiling speakers:
(VLSPMTC60WT) 2x25Watts

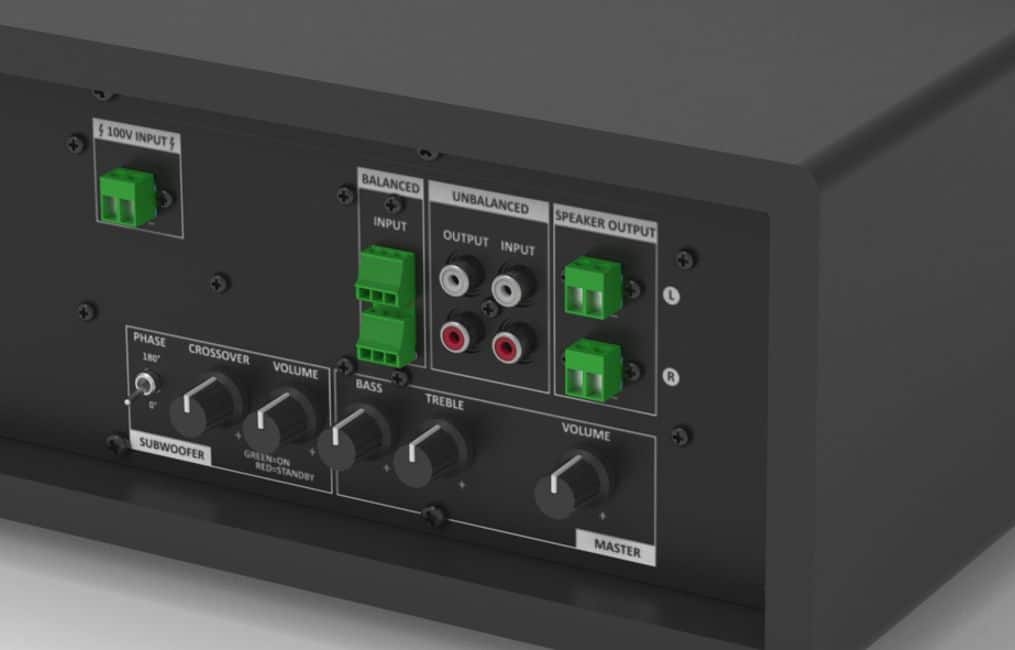

• Inputs: 100V, Balanced in and RCA line in
• Bluetooth input for speaker out only (not supported for line-out)
• Outputs: RCA line out and Speaker out 2x 25W
• Line out for active speakers (VLSP60/65/61/70)
• Frequency range: 80Hz-20kHz
• Impedance: 8 Ohm

Amplifier

Amplifier:
Built-in
Amplifier class:
D
Amplifier output power (woofer):
50 W
Amplifier output power (tweeter):
30 W
Amplifier output power:
110 W

Audio

Crossover frequency:
200 Hz
Frequency range:
40 - 20000 Hz
Impedance:
4 Ω
RMS rated power:
110 W
Speakers RMS power:
60 W

Loudspeakers

Audio output channels:
2.1 channels
Number of drivers:
3
Speaker placement:
Ceiling-mountable
Subwoofer RMS power:
50 W
Woofer:
Yes
Woofer diameter (imperial):
20.3 cm (8")

Other features

Accessories included:
AC Power Cord
Adaptor plug:
EU
Audio (L/R) in:
1
Case colour:
Black
Front speaker frequency range:
80 - 20000 Hz
Front speaker impedance:
4 Ω
Housing colour:
Black
Magnetically shielded:
Yes
Number of amplifier channels:
3 channels
Speaker weight:
6.36 g

Packaging content

Cables included:
AC
Manual:
Yes
Mounting brackets included:
Yes

Packaging data

Package depth:
210 mm
Package height:
265 mm
Package weight:
6.75 kg
Package width:
440 mm

Performance

Certification:
CE
Housing material:
Plastic
On/off switch:
Yes
Product colour:
Black
Volume control:
Rotary

Ports & interfaces

3.5 mm (1/8-inch) in:
Yes
6.35 mm (1⁄4-inch) input:
1
Audio RCA inputs:
1
Connectivity technology:
Wired

Power

AC input voltage:
230 - 240 V
Current:
1 A
Power consumption (standby):
0.5 W
Power consumption (typical):
75 W
Power source type:
AC

Technical details

Warranty period:
3 year(s)

Weight & dimensions

Depth:
210 mm
Height:
265 mm
Weight:
6.26 kg
Width:
440 mm
