HDMI

Vivolink: Professional AV Solutions

Optic HDMI 4K Cable 100m on Drum

EAN: 5704174997764

MPN: PROHDMIOP100-DRUM

  • Cable use Class-1 Professional laser with 12 years warranty
  • CEC & ARC Support
  • Cable is built with military standard optical fiber
  • Power consumption only 0,35W
  • Optic fiber is covered with copper wires
  • Kevlar filling inside makes the cable extremely strong and robust
  • Lock ring in cable head secure no damage by pulling in cable
  • Cable head is made by molded metal
  • Connector pins are gold bladed for a reliable and perfect contact
  • The optical fiber converter is extremly high quality chip set
  • Minimum bend radius: 20mm
  • Unlimited number of bends with bend radius down to 20mm
  • working temperature: -20 degree to + 60 degree

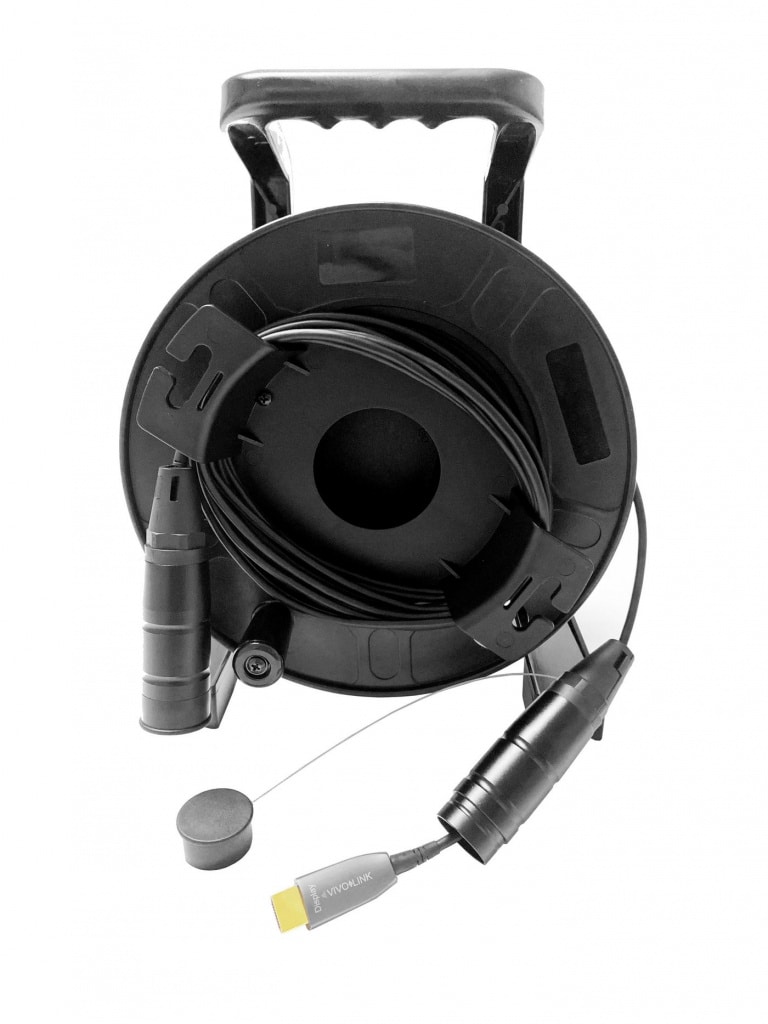

100m Fiber Optic HDMI on Drum.
Run the 100 meters of fiber optical HDMI safe, smooth and fast from source to display. The HDMI heads are secured by covers and hold in place with velcro strip when stationary or stored.
HDMI 2.0 Support 4K/60Hz 4:4:4 18Gbps, HDR 12bit, HDCP2.2, 3D & ARC. Slim size of 4.0mm.
Typical installation:
Places where high resolution is required on long distance.

Tensile Strength (Pull resistance): 20 kg.

Features

3D:
Yes
Cable length:
100 m
Cable material:
Fiber optic
Colour depth:
16 bit
Connector 1:
HDMI Type A (Standard)
Connector 1 form factor:
Straight
Connector 1 gender:
Male
Connector 2:
HDMI Type A (Standard)
Connector 2 form factor:
Straight
Connector 2 gender:
Male
Connector contacts plating:
Gold
Data transfer rate:
18 Gbit/s
Dolby technologies:
DTS-HD Master Audio
HDCP:
Yes
HDCP version:
2.2
HDMI Ethernet channel:
Yes
HDMI version:
2.0
High Dynamic Range (HDR) supported:
Yes
High Dynamic Range (HDR) technology:
High Dynamic Range 10 (HDR10)
Maximum refresh rate:
60 Hz
Maximum resolution:
4096 x 2160 pixels
Plug and Play:
Yes
Product colour:
Black
Quantity per pack:
1 pc(s)
Supported graphics resolutions:
4096 x 2160
Supported video modes:
2160p

Operational conditions

Operating temperature (T-T):
-20 - 60 °C

Weight & dimensions

Cable diameter:
5 mm
Package weight:
5 kg
Weight:
4.8 kg
