Video Wall processor 4 screens

EAN: 5704174472650

MPN: VLVW1X4

  • HDMI input up to 4Kx2K@60Hz 4:4:4
  • Nine video wall modes (1×1, 1×2, 1×3, 1×4, 2×1, 3×1, 4×1, 2×2, 2×2 Rotation)
  • Built in automatic up & down-scaling to 1080p output
  • Cascade function for 16 screen set-up

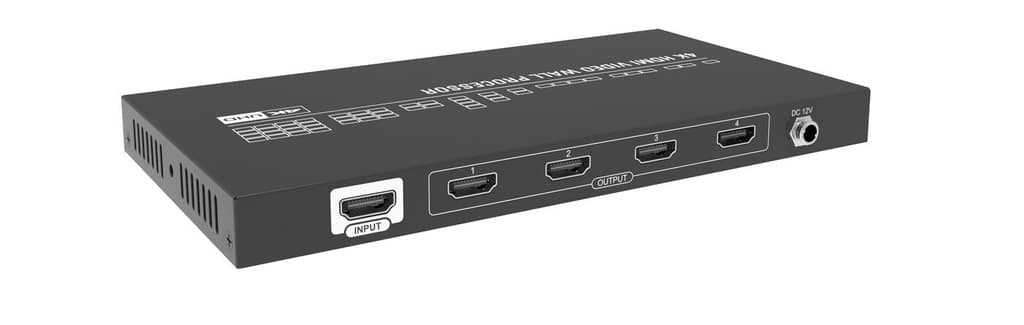

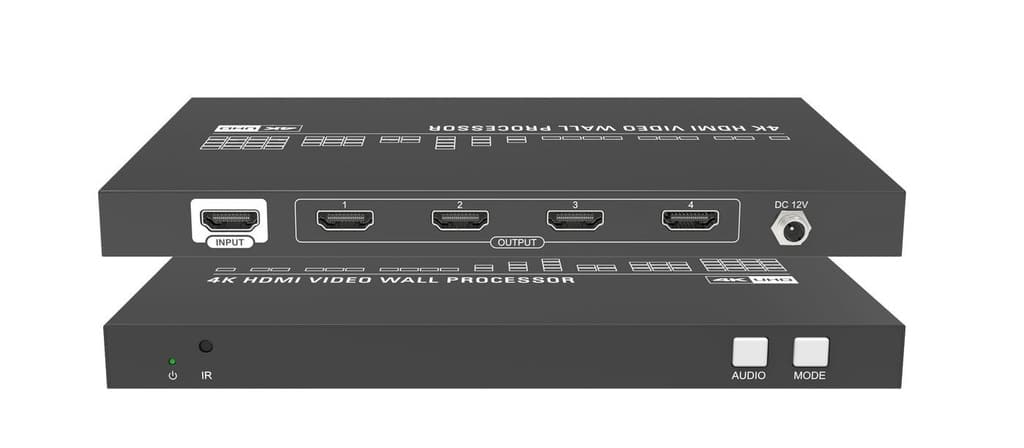

This Vivolink VideoWall processor have 1 HDMI input and 4 HDMI outputs.
HDMI input supports resolutions up to 4Kx2K@60Hz 4:4:4 and output resolution is fixed to be 1920x1080p@60Hz.
9 diffrent video wall modes, can be selected via front panel button and IR remote.
Excample:

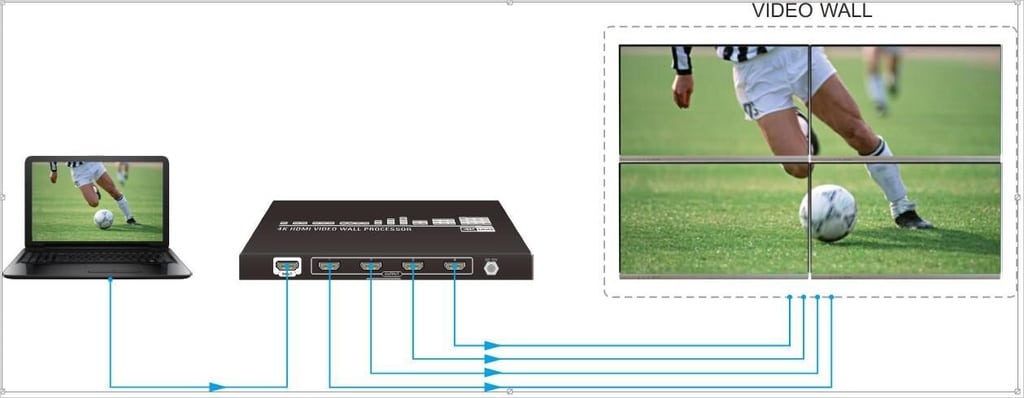

2×2 will devide picture into 4 pictures for four screens
1×2 will strech the picture horisontal out on two screens

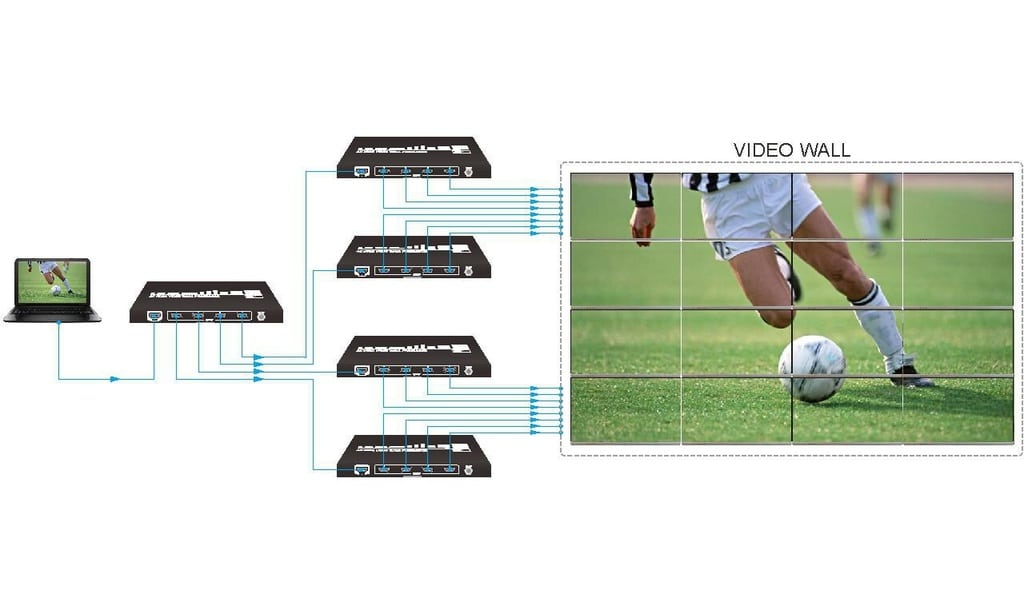

Video wall processor can be cascade coupled to support 16 screens

Design

Built-in display:
No
Control type:
Buttons
Product colour:
Black

Features

Audio formats supported:
PCM
HDCP:
Yes
HDCP version:
2.0
Maximum refresh rate:
60 Hz
Maximum resolution:
3840 x 2160 pixels
Number of displays supported:
4
Scaled resolutions:
1920 x 1080
Supported video modes:
1080p

Operational conditions

Operating relative humidity (H-H):
10 - 90%
Operating temperature (T-T):
-5 - 55 °C
Storage temperature (T-T):
-25 - 70 °C

Ports & interfaces

HDMI input ports quantity:
1
HDMI output ports quantity:
4
HDMI version:
2.0b

Power

Input frequency:
50/60 Hz
Input voltage:
100 - 240 V
Power consumption (max):
11 W
Power supply location:
External

Weight & dimensions

Depth:
110 mm
Height:
18 mm
Package weight:
550 g
Weight:
450 g
Width:
210 mm
